Are luminous intensity and illuminance the same, or are they different? To answer this question, follow along as we explore and clearly explain both concepts.

Have you ever walked into a room and felt the lighting was either too dim, straining your eyes, or too harsh and uncomfortable? Or perhaps you bought a lamp only to find it doesn’t provide the brightness you expected? That’s exactly when the distinction between luminous intensity and illuminance becomes important.

Many people confuse these two terms, but in reality, they refer to entirely different things. Luminous intensity refers to the amount of light a source emits in a specific direction, while illuminance indicates how that light spreads across surfaces and affects a space. For example, imagine a flashlight. It may emit a strong beam of light, but it only lights up a small area on a wall. In contrast, a ceiling light might emit less intense light but still illuminate an entire room evenly.

Understanding the difference between luminous intensity and illuminance is crucial in lighting design, as choosing the wrong approach could result in a space that feels too dark and tiring or overly bright and irritating. For instance, a light source with high luminous intensity but poor illuminance might brightly light one area while leaving others in shadow.

So, how can we adjust both luminous intensity and illuminance properly? How can we determine the appropriate lighting levels for different spaces? In this article, we’ll explore both concepts in a simple and practical way, introduce the tools used to measure them, and explain how to use this knowledge to achieve optimal and pleasant lighting. If you’re looking to enhance lighting in your workspace, home, or any other area, read on!

Luminous Intensity vs. Illuminance: Concepts and Key Differences

What is Luminous Intensity?

Luminous intensity refers to the amount of light emitted by a source in a specific direction, measured in candelas (cd). Simply put, it indicates how powerful a light source is in a particular direction.

Example: Imagine holding a flashlight. When you aim it at a wall, the light it emits in that direction is its luminous intensity. If you focus the beam with a lens, the luminous intensity in that direction increases.

What is Illuminance?

Illuminance refers to the amount of light that falls on a surface, measured in lux (lx). It depends on how much light reaches and spreads across a specific area.

Example: When you shine the same flashlight on a wall, the amount of light covering the surface determines the illuminance. If you move the flashlight farther away, the wall becomes dimmer—illuminance decreases—while the flashlight’s luminous intensity stays the same.

So, to determine a light’s luminous intensity, you measure how much light it emits in a particular angle (in candelas). But to understand how well a room is lit, you measure how much light actually reaches the surfaces (in lux).

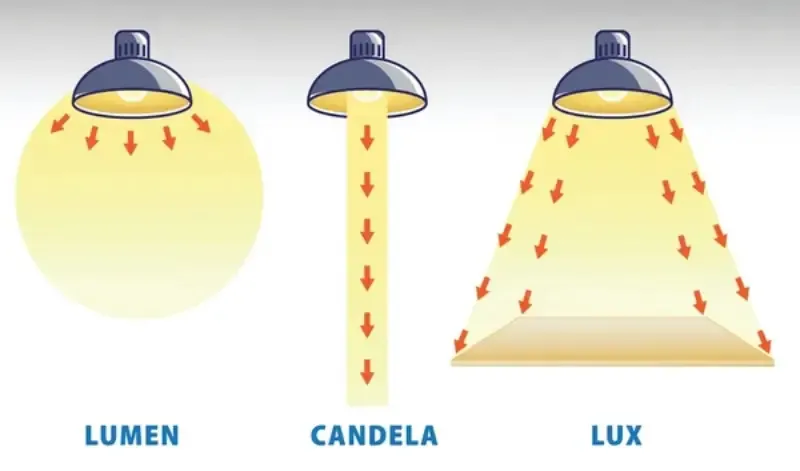

Key Differences Between Luminous Intensity and Illuminance

Measurement Units:
- Luminous Intensity: Measured in candela (cd)
- Illuminance: Measured in lux (lx)
Nature:
- Luminous intensity depends on the power of the light source.
- Illuminance depends on the surface area receiving the light.
Distance Sensitivity:
- Illuminance decreases as the distance from the light source increases.
- Luminous intensity is intrinsic to the light source and does not change with distance.
Application:
- Luminous intensity is relevant in light source design.
- Illuminance is crucial for planning indoor and outdoor lighting.

How to Adjust Luminous Intensity and Illuminance for Different Spaces

In Residential Settings

Each area of the home requires different lighting levels:

Study rooms: At least 500 lux is needed to prevent eye strain.
Bedrooms: Soft, warm lighting promotes relaxation.
Kitchens: Lighting should be even and shadow-free to support visibility while working.

Example: Cozy lighting in cafés creates a relaxed vibe on purpose. In contrast, libraries use brighter lighting to make reading easier.

In Office Spaces

Proper illuminance improves productivity.
Offices typically require at least 500 lux.
Use a combination of natural and artificial lighting.
Avoid glare and overly bright lights.

Example: Semi-transparent curtains in offices with large windows help regulate brightness by reducing glare without blocking natural light entirely.

In Commercial and Retail Spaces

Use focused lighting to highlight products.
Warm lighting in rest areas enhances comfort.
Cooler lighting at cash registers helps staff stay alert.

Example: Clothing stores often use warmer lights for a cozy feel, while jewelry shops use bright, cool lighting to make products sparkle.

Impact of Luminous Intensity on Energy Consumption and Light Quality

Energy Consumption

High-intensity light sources with low efficiency consume more energy.
Switching to high-efficiency LED lights reduces electricity usage.

Visual Comfort and Light Quality

Excessively bright or dim lighting causes eye fatigue and reduces focus.
Adjusting illuminance levels to match the space enhances visual comfort.

Example: Movie theaters are kept dim for screen visibility, while hallways remain properly lit so people can move around safely.

Choosing the right lighting helps save energy and improves lighting quality.

Tools for Measuring Luminous Intensity and Illuminance

Lux Meter

Measures illuminance (lux) in a specific area.
Example: Lighting engineers use it to assess workplace and industrial lighting levels.

Photometer

Measures luminous intensity at specific angles.
Example: Used in designing streetlights to determine optimal intensity.

Using the right tools to measure light helps design efficient lighting systems and reduce energy usage.

Conclusion: A Practical Understanding of Lighting

Luminous intensity and illuminance are two related yet distinct concepts. Luminous intensity concerns the strength of a light source, while illuminance relates to how much light reaches a surface. By properly adjusting both, you can create optimal lighting in any space. Accurate measurements also help improve lighting quality and reduce energy consumption.

Now that you’re familiar with the difference between these terms, the next time you switch on a light, ask yourself: “Is this the right intensity and brightness for this space?”
